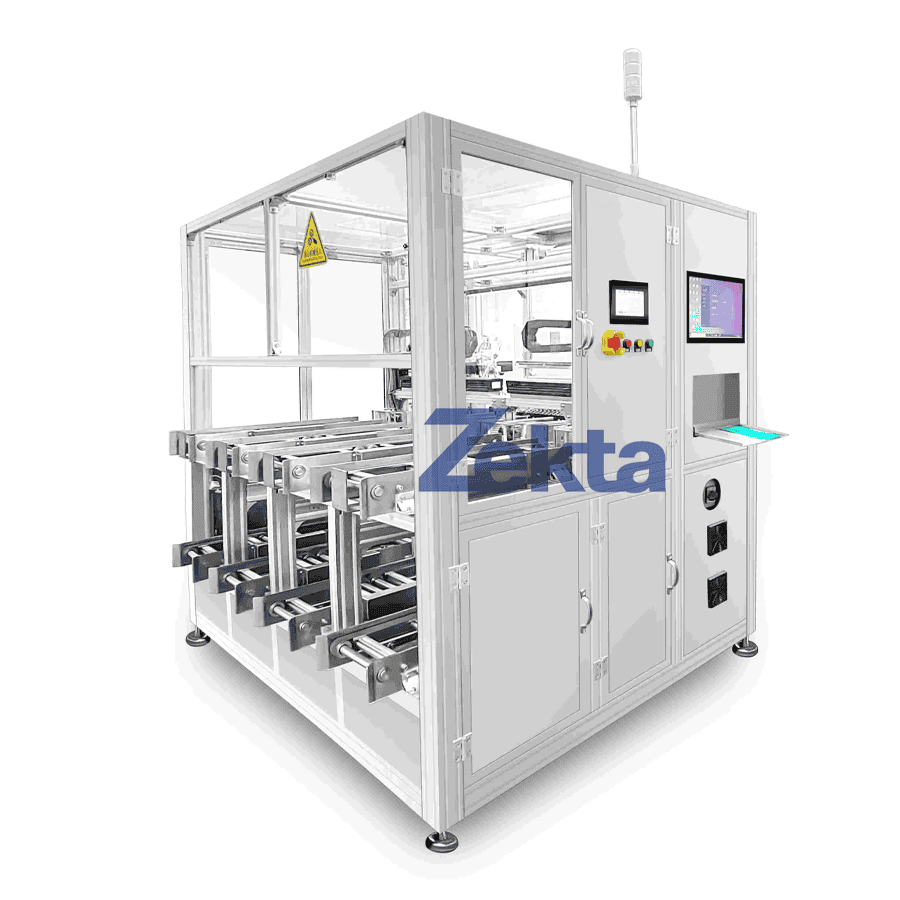

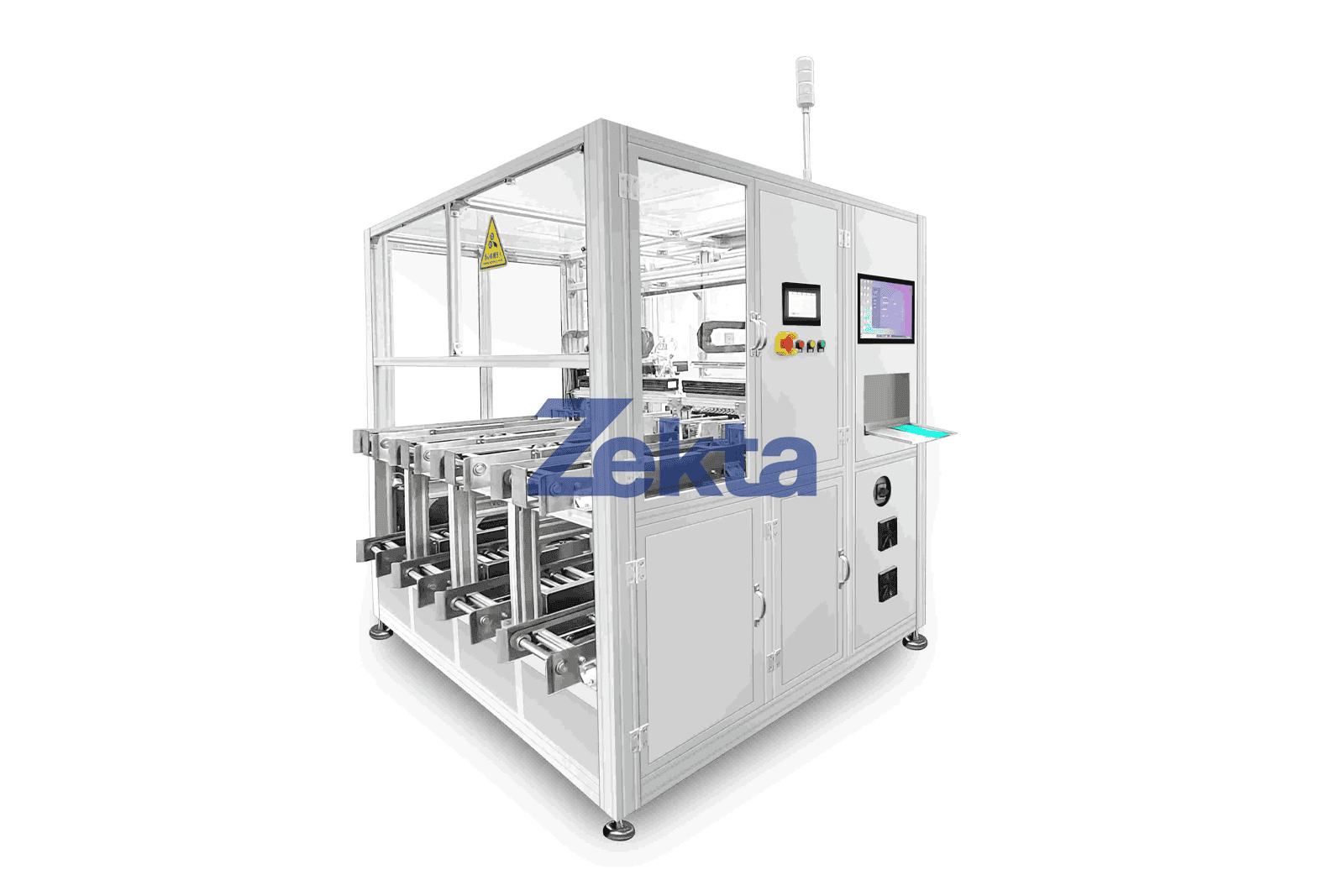

Ceramic Substrate Automatic Stacker
Quick Inquiry
description
The input material is arranged in four columns. The machine can accommodate up to 32 trays, with each tray holding 25 pieces. This allows for a maximum temporary storage capacity of 400 pieces.
gallery
Specifications
| No. | Parameter | Specification |
| 1 | Machine Dimensions | L2200×W2000×H2000mm (excluding alarm light height) |
| 2 | Machine Weight | Approx. 1200kg |
| 3 | Substrate Specifications | Width: 5″ (138mm) Length: 7″ (192mm) Thickness: 0.1-3.2mm (copper included) Warpage: ≤1mm |
| 4 | Product Handling | CCD vision-guided robotic arm pickup |
| 5 | Storage Capacity | 400 substrates capacity |
| 6 | Throughput | 800 pieces/hour |
| 7 | Working Height | 1050±50mm |
| 8 | Conveyor Speed | Adjustable 1-5m/min |
| 9 | Power Requirements | Single-phase 220V, 50Hz, 5KW |
| 10 | Pneumatic Supply | 4-6kg/cm², 50L/min |
